Cone Valve IBCs vs Butterfly Valve IBCs

Cone Valve IBCs vs Butterfly Valve IBCs:
Which Is Better for Powder Handling?

Why Valve Matters in Powder IBC Systems:
Intermediate Bulk Containers (IBCs) are central to modern powder handling systems — but the valve design at the bottom of the container can make or break your process.
Two common IBC types are Cone Valve IBCs and Butterfly Valve IBCs. Both look similar externally, but they perform very differently when it comes to flow control, product integrity, dust containment, and operational efficiency.
What Is a Cone Valve IBC?
The Cone Valve IBC features a patented, conical discharge valve integrated into the base of the container. The cone lifts vertically to:
Promote mass flow of powders
Break up bridging and rat-holing during discharge
Control the flow rate from start to finish
Deliver segregation-free discharge
The cone movement agitates the powder above it, ensuring a consistent and controlled flow —especially for cohesive, sticky, or poorly flowing powders.
What Is a Butterfly Valve IBC?
The Butterfly Valve IBC uses a simple rotating disc to open or close the outlet. It is a low-cost solution, often used for free-flowing materials. However, this valve:
Does not promote mass flow
Cannot effectively control discharge rate
Often causes rat-holing or blockage
Can result in powder segregation and uncontrolled discharge
Butterfly valves are also more prone to leakage, dust emission, and manual handling risks during operation.
Side-by-Side Comparison: Cone Valve vs Butterfly Valve IBCs
Key Benefits
⏱️ Clean Offline – No Impact on Production
No more downtime for cleaning. Our system is designed to operate independently from your production online, allowing you to clean IBCs in parallel without halting processing operations.
Benefits:

Maximise uptime and throughput
Clean IBCs in parallel to ongoing operations
Ideal for high-mix, fast-paced manufacturing environments
⚙️ Fully Automatic Cleaning Cycle
The system delivers a hands-free cleaning process, from pre-rinse to hot air drying — all at the push of a button.
Benefits:

Reduce manual labour and operator exposure
Standardise cleaning performance
Automate SOP compliance for regulated industries
🎚️ Repeatable & Validated Cleaning
Achieve consistent results every cycle — critical for industries requiring GMP or HACCP-level cleanliness.
Benefits:

Repeatable cleaning outcomes
Easily validated for audit and QA requirements
Supports full traceability and documentation
🚿 Hot Water & Detergent Integration
Effectively remove stubborn, sticky, or allergenic powder residues with integrated hot water and detergent cycles.
Benefits:

Breaks down difficult-to-clean residues
Eliminates cross-contamination risks
Customizable wash cycles based on product type
🛡️ Built-In Hot Air Drying
After washing, IBCs are thoroughly dried using a hot air drying system, ensuring they’re ready for immediate reuse or storage.
Benefits:

Fast drying = faster turnaround
Prevents microbial growth or moisture retention
No need for external drying equipment
🛢️ Compatible with 500L – 3500L IBCs
Designed to fit a range of powder IBC sizes commonly used in food, pharma, chemical, and nutraceutical industries.
Benefits:

One system for multiple IBC formats
Reduces capital equipment duplication
Adaptable to your full IBC fleet
🌟 Simplified & Cost-Effective Design

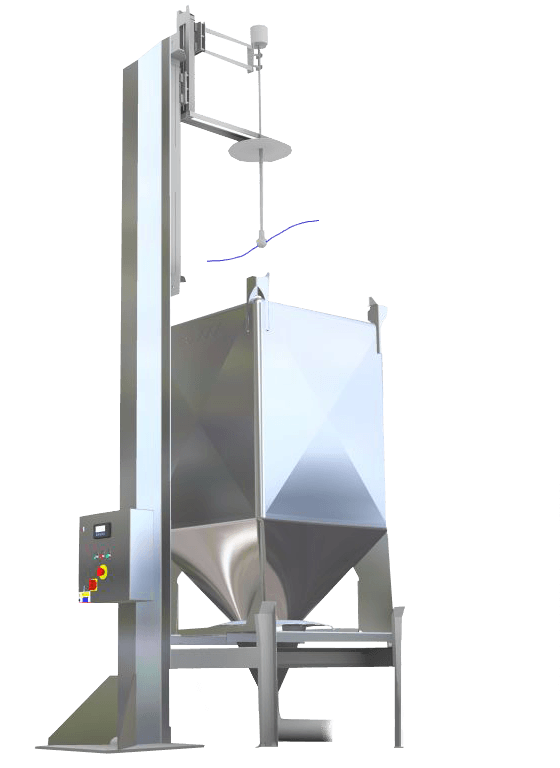

Unlike complex CIP systems, our IBC Wet Washing System provides a dedicated, standalone cleaning solution with a lower cost of ownership and minimal maintenance.

Benefits:

Compact and easy to install
Minimal operator training required
Affordable alternative to complex CIP systems
When to Upgrade from Butterfly to Cone Valve IBCs
You should consider switching to Cone Valve IBCs if you:
Handle difficult, cohesive, or fine powders
Require batch integrity and segregation-free transfer
Need fast recipe changeovers and low cleaning time
Operate under GMP, ATEX, or FDA regulations
Want to future-proof your plant with scalable, automated handling systems
Trusted in Southeast Asia & Beyond

Manufacturers across Malaysia, Singapore, the Philippines, Indonesia, Vietnam, Thailand, and the broader ASEAN region are already upgrading to Cone Valve IBC systems to meet growing demands for:
Flexibility
Hygiene
Automation
Consistency
From pharmaceutical APIs to food pre-mixes and cosmetic powders, Cone Valve IBCs deliver consistent results with minimal risk.
Ready to Make the Switch?
Our team helps manufacturers transition from outdated butterfly valve systems to fully integrated Cone Valve IBC solutions — with local support across Southeast Asia. Let’s improve your powder handling performance. Contact us now for a system assessment or on-site demo.
